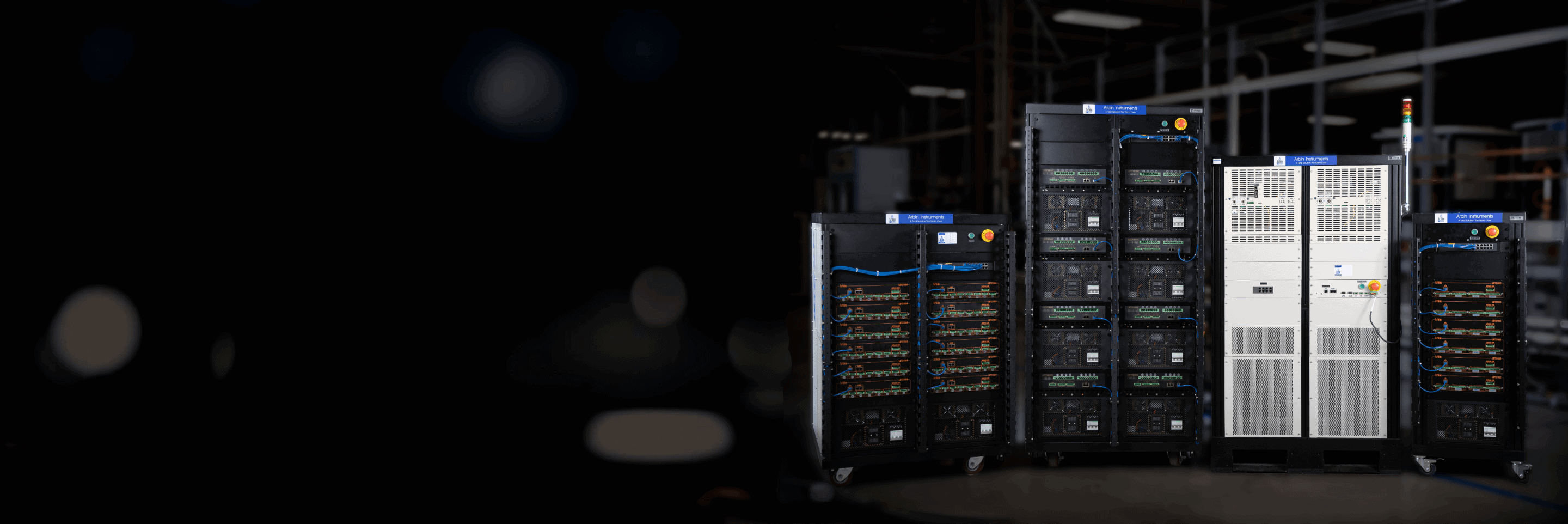

Arbin offers charge/discharge battery testing systems ranging from μA single cell applications up to 1MW packs.

image_resource_beta

Applications Include

  • Coincell, cylindrical, prismatic, & pouch/flat cell testing
  • Battery modules and packs of all sizes
  • Any battery chemistry including lithium, silicon, sulfur, lead-acid, nickel, & more
  • Battery cycling, electrochemical experiments, and advanced real-world simulations
  • HPC measurements (coulombic efficiency)
  • Electric vehicle battery testing
Battery module testing in temperature chambers.
Battery module testing in temperature chambers.
High-capacity cell testing.
High-capacity cell testing.
Testing pouch cells with a cycler and battery rack from Arbin.
Testing pouch cells with a cycler and battery rack from Arbin.

Product Highlights

Measurement Precision

Better than 100ppm precision standard on all LBT models.

High precision CE testing available up to 200A with HTP models.

Resolution

Industry-leading 24-bit resolution.

EIS

High accuracy EIS measurements can be multiplexed for all channels in a multi-channel system using a 3rd party EIS module.

Channel Function

Each testing channel operates fully independent of other channels.

Parallel any number of channels for increased current handling.

Data Logging

Standard data logging rate at 2000 points per second, per system.

High speed pulse testing available.

Circuitry

True bipolar circuitry ensures cross-zero linearity and zero switching time between charge and discharge

Safety

Redundant internal micro-controller dedicated to safety monitoring.

BMS Communication

Communicate with internal battery management system via CANBus or SMBUs protocol.

Auxiliaries

Many auxiliary channels are available such as additional voltage ref electrodes, temperature measurement, chamber control, digital I/O, and more.

Importance of Precision

This plot illustrates the difference between an Arbin battery tester and another leading manufacturer. The two distinct dips in the plot may have been missed using inferior test equipment. While many companies try to sell the same antiquated equipment for over a decade, Arbin has been hard at work improving our designs to meet future industry demands. We learned a lot during our three year ARPA-E project to develop high-current high-precision testers, and have implemented this new technology in our MSTAT, LBT and HPT test equipment series. The HPT and MSTAT systems represent our premium product, but LBT is superior to other standard testers on the market.

Measurement precision is more critical for long‐term battery testing and long‐term battery projections than control accuracy alone. Most other battery testing systems do not correctly specify their precision and/or have relatively poor precision, which hinder the conclusions drawn from results data. Important trends and electrochemical indicators may remain unnoticed; lost in the measurement noise as illustrated above

What Affects Tester Precision Arbin Tester Improvements
Resolution of DAC Higher Resolution
Resolution of ADC Improved Software Algorithms
Non-linearity of calibration New Ways of Temperature Management
Short-term drift (temperature) New Patented Shunt Design
Long-term drift (material characteristics) New Method of Time Keeping
Resolution of DAC New Materials
differential-capacity-graph

Ready to Build Your Arbin Battery Testing System?

Our hope is that these higher degrees of measurement precision will lead to new discoveries and characterization metrics across the energy storage industry for all organizations, not only those looking at coulombic efficiency as a key indicator.

differential-capacity-graph-voltage

How to evaluate Battery Testing Equipment

Batteries are a critical component of many products, and energy storage plays a very active role in our lives even outside of the research/industry setting. Therefore, selecting the right battery test equipment is an important decision for companies and the individual researchers who are responsible for producing results, whether they are starting small, or at massive scale.

The expert engineers at Arbin have been advancing the benchmark of “state-of-the-art” battery test equipment for over 30 years. We are defined by innovation, from being the first to apply multiple current ranges on a single test channel to more recently being the only company to offer true high-precision testing for high current applications, and supporting “Turbo Mode” with smart battery modules. We continue to learn from our industry partners and work with them on key technology breakthroughs.

The following report shares some of this knowledge using plain terminology and illustrations. Here are five key topics to consider when choosing battery test equipment:

  1. Hardware – Specifications & Quality of Materials
  2. Software – Usability and Features
  3. Data – Logging, Management, and Analysis
  4. Options – Auxiliary Features and Accessories
  5. Support – Product Safety and Support

Contact Us Today for a Quote

Complete our contact form to request a quote or learn how battery test equipment from Arbin Instruments can meet your testing requirements.
