Battery Holders and Battery Racks
Arbin offers a wide range of options and systems for connecting various types of batteries for testing. From coin cell and cylindrical cell holders and trays to flat/pouch cell holders and racks, we have the full solution for your battery test setup.
Coin Cell Battery Holders and Trays
16mm Coin Cell Battery Holder
Max Current: 5A
Dims: 1.5 x 2 x 0.5 in.
Cell Size: OD <16mm; H=1.2~3.2mm
20mm Coin Cell Battery Holder
Max Current: 5A
Dims: 1.5 x 2 x 1 in,
Cell Size: OD <20mm; H=1.6~3.2mm
23mm Coin Cell Battery Holder
Max Current: 5A
Dims: 1.5 x 2 x 0.5 in.
Cell Size: OD <23mm; H=1.2~3.2mm
Universal Coin Cell Battery Holder
Max Current: 3A
Dims: 1.3 x 4 x 1.5 in.
Cell Size: OD 10-33mm; H=<7mm
Universal 8-Cell Coin Cell Tray
Max Current: 3A
Dims: 12.5 x 4 x 1.5 in.
Cell Size: OD 10-33mm; H=<7mm
30mm Coin Cell Battery Holder
Max Current: 5A
Dims: 1.5 x 2 x 0.5 in.
Cell Size: OD <33mm; H=1.2~3.2mm
Cylindrical Cell Battery Holders and Trays
Arbin's Cylindrical Cell Holders and Trays are ideal for 18650 and 21700 cells.
*Below products utilize Electrical contact and testing apparatus under U.S. Patent No. US10161963B2.
10A Cylindrical Cell Battery Holder
Max Current: 10A
Dims: 2.5 x 11.5 x 3 in.
Cell Size: OD 10-35mm; L 20-120mm
30A Cylindrical Cell Battery Holder
Max Current: 30A
Dims: 2.5 x 11.5 x 3 in.
Cell Size: OD 10-35mm; L 20-120mm
60A Cylindrical Cell Battery Holder
Max Current: 30A
Dims: 2.5 x 11.5 x 3 in.
Cell Size: OD 10-35mm; L 20-120mm
200A Cylindrical Cell Battery Holder
Max Current: 200A
Dims: 3 x 12 x 3.5 in.
Cell Size: OD 10-35mm; L 10-120mm
10A 8-Cell Cylindrical Cell Battery Tray
Max Current: 10A
Dims: 17.5 x 12 x 4 in.
Cell Size: OD 18-21mm; L 40-85mm
30A 8-Cell Cylindrical Cell Battery Tray
Max Current: 30A
Dims: 17.5 x 12 x 4 in.
Cell Size: OD 18-21mm; L 40-85mm
60A 8-Cell Cylindrical Cell Battery Tray
Max Current: 60A
Dims: 17.5 x 12 x 4 in.
Cell Size: OD 18-21mm; L 40-85mm
Flat Cell and Pouch Cell Battery Holders and Trays
10A Flat/Pouch Cell Battery Holder
Max Current: 10A
Length: 3, 6, or 12 ft.
200A Flat/Pouch Cell Battery Holder
Max Current: 200A
Dims: 12.5 x 14 x 4 in.
Cell Size: L <200mm; W <285mm

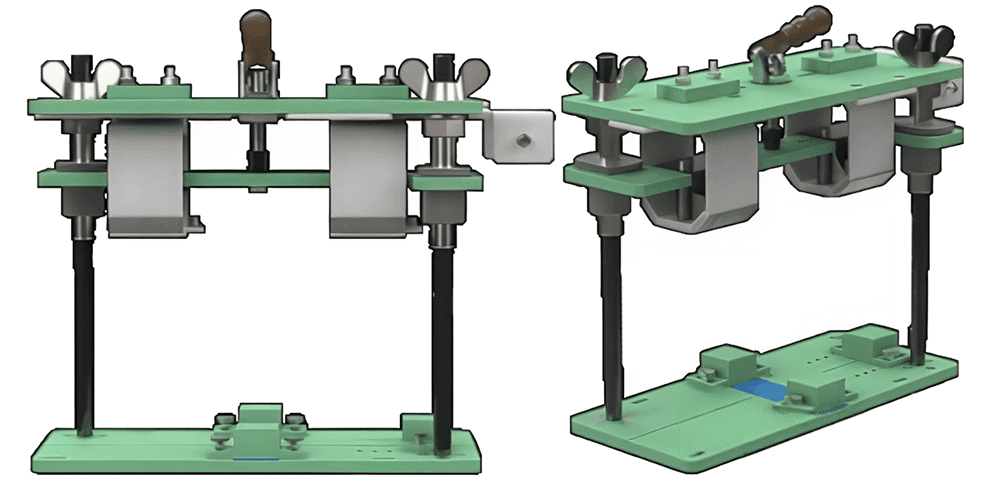

300A Flat/Pouch Cell Battery Holder
Max Current: 300A
Dims: 12.5 x 14 x 4 in.
Cell Size: L <200mm; W <285mm
10A 4-Cell Flat/Pouch Cell Battery Tray
Max Current: 10A
Dims: 17.5 x 12 x 2 in.
Cell Size: L <230mm, W <100mm
60A 4-Cell Flat/Pouch Cell Battery Tray
Max Current: 60A
Dims: 17.5 x 12 x 2 in.
Cell Size: L <230mm, W <100mm
Battery Racks
Choose Rack Size: 5-layer, 8-layer, 16-layer, or 24-layer
Choose Tray Type: Cylindrical Cells, Flat/Pouch Cells, or Plain Shelf (can be used to organize other battery holders)
Choose Cable Length: 6ft. (~2m), 12ft. (~3.5m), or 20ft. (~6m)
Rack Material: Aluminum
Space Between Layers: 7 in.
Each "layer" will hold one battery tray comprised of 4 of 8 cells
Racks come with lockable castor wheels
Useful Tips for Planning Your Battery Testing Setup
- Individual cables
- Individual cell holders (coin cells, cylindrical cells, flat/pouch cells)
- Trays to hold multiple cells (coin cells, cylindrical cells, flay/pouch cells)
- Racks to organize cells
- Chambers
